Medical Elbow High Voltage Cable
Medical elbow high voltage cable listed with 75kV/90kV specifications, used for X-Ray tube head and high-voltage generator connection in large and medium-sized X-Ray devices.
Specification
The source product information lists 75kV / 90kV.
Color
The source page lists the color as gray.
Connector Form
Elbow connector form is evaluated for internal device layout and cable direction needs.
Supply Capacity
The source page lists 10,000 pieces per month supply capacity and 100-piece minimum order quantity.
Product Description

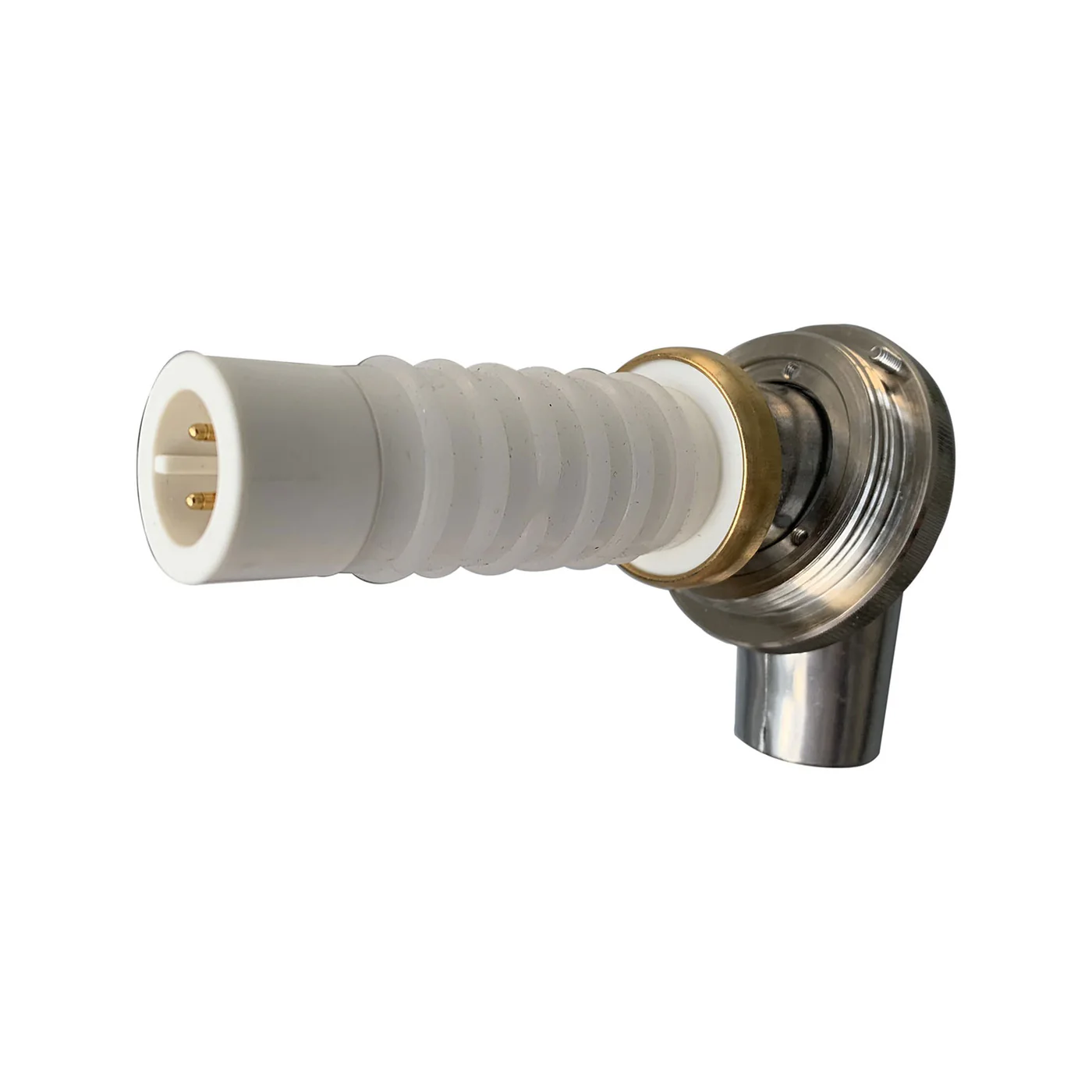

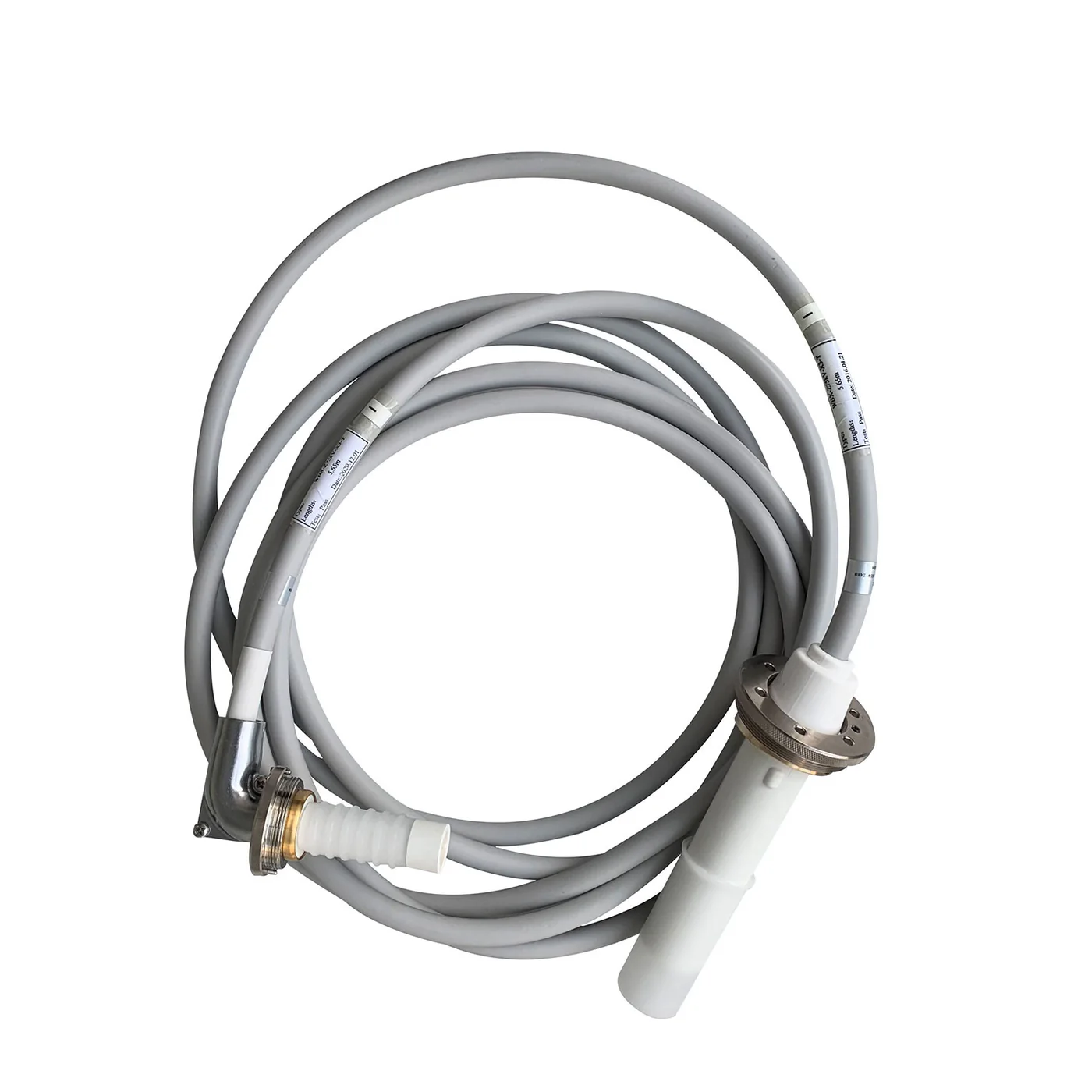

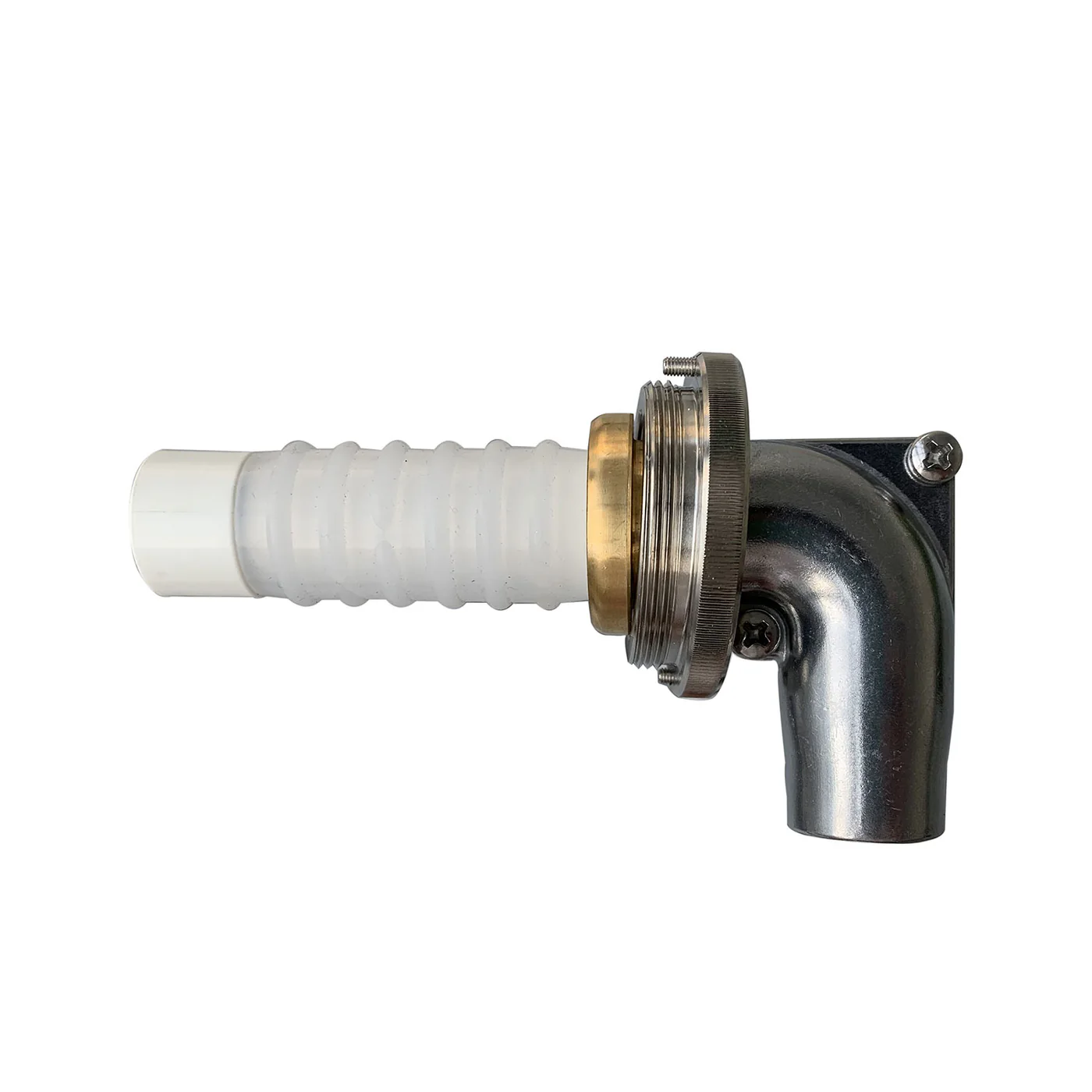

Medical elbow high voltage cable connects the high-voltage generator and X-Ray tube head in large and medium-sized X-Ray machines. Its function is to send high-voltage output to the two poles of the X-Ray tube and deliver filament heating voltage to the X-Ray tube filament. The elbow joint form helps manage cable direction in compact device layouts.
- 75kV / 90kV high voltage cable
- Gray cable sheath
- Elbow joint connector form
- X-Ray tube and generator connection
- Cable accessories can be ordered separately
- Minimum 66 mm bending radius during use
Product Images
Technical Specifications
Classification and Connection Role
The source page explains high voltage cable structure as coaxial and non-coaxial types according to central-line arrangement. The elbow joint form is used to manage cable direction according to the internal device space in generator and X-Ray tube head connections.
- Coaxial structure
- Non-coaxial structure
- Elbow joint connection
- Filament heating voltage transfer
Use Precautions
The cable should be protected from excessive bending. According to the source text, bending radius should not be less than 5-8 times the cable diameter, and during use the minimum bending radius should not be less than 66 mm. The cable should be kept dry and clean and protected from oil, moisture and harmful gas erosion.
- Avoid excessive bending
- Keep the cable dry and clean
- Protect from oil, moisture and harmful gases
- Accessories can be ordered separately
Quality and Delivery
The source page states that the cable sheath should be smooth with uniform diameter and without joints, bubbles or impact defects. Waterproof carton packaging, 51 x 50 x 14 cm package size, 12 kg gross weight and 10 kg net weight are listed.
- Braided shield density at least 90%
- AC 1.5kV and DC 90kV withstand expectations
- ROHS 3.0 and REACH compliance evaluation
- Approx. 3 days for 1-10 pcs, 7 days for 11-20 pcs, 15 days for 21-200 pcs
