75kV High Voltage Cable
NK-75KVDC 75kV high voltage cable used for connection between the high-voltage generator and X-Ray tube head in large and medium-sized X-Ray systems.
Model
75kV high voltage cable listed as NK-75KVDC.
Rated Temperature
The source product information lists a 70 C rated temperature.
Use Case
Suitable for mobile, portable, standard X-Ray, DR, CT, angiography, C-arm and U-arm systems.
Supply Capacity
The source page lists 10,000 pieces per month supply capacity and 100-piece minimum order quantity.
Product Description
75kV high voltage cable is used to send high-voltage output from the high-voltage generator to the two poles of the X-Ray tube and to deliver filament heating voltage to the X-Ray tube filament. It is planned for safe, stable and device-compatible connection between generator and tube head in large and medium-sized X-Ray systems.
- Model: NK-75KVDC
- Product name: X-Ray high voltage cable
- Mobile and portable X-Ray devices
- DR, CT and angiography equipment
- C-arm and U-arm imaging systems
- Cable accessories can be ordered separately

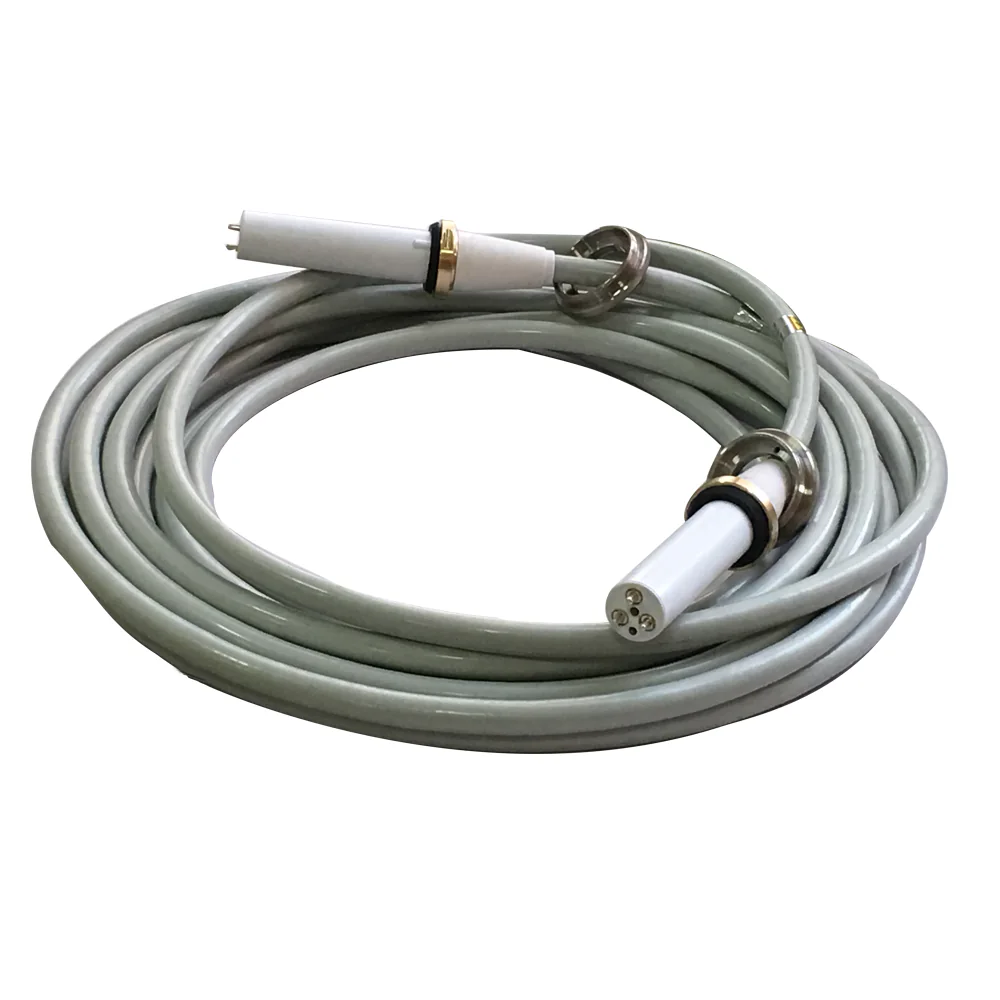

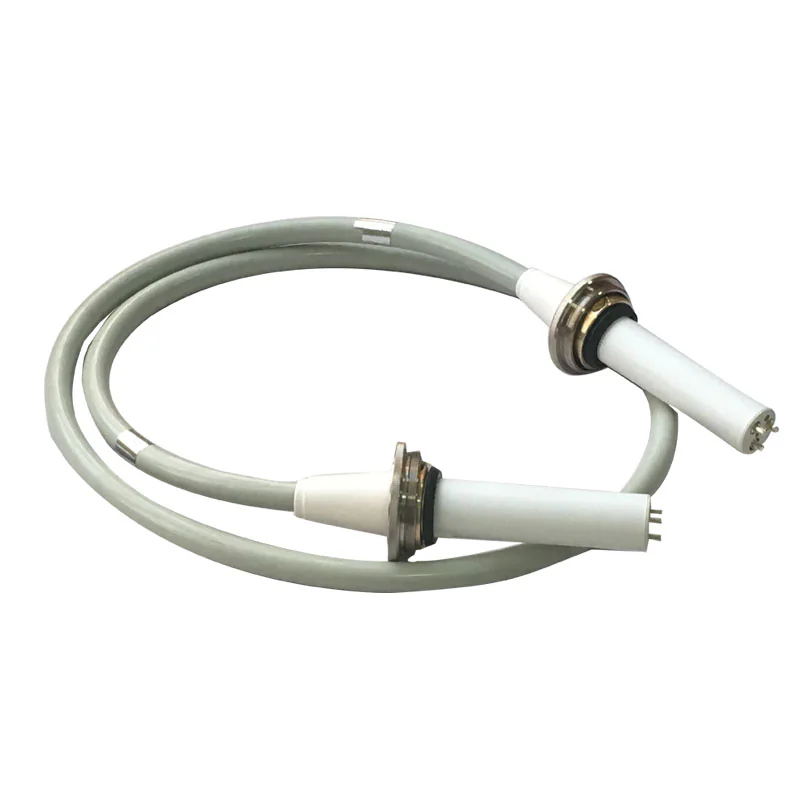

Product Images
Technical Specifications
Classification and Structure
The source product page classifies high voltage cables according to core-line arrangement as coaxial and non-coaxial types. The product is used to connect the high-voltage generator and X-Ray tube head in large and medium-sized X-Ray machines.
- Coaxial structure option
- Non-coaxial structure option
- Generator and X-Ray tube head connection
- Filament heating voltage transfer
Use Precautions
Excessive bending should be avoided during use. According to the source text, bending radius should not be less than 5-8 times the cable diameter, and during use the bending radius should not be less than 66 mm. The cable should be kept dry and clean, and protected from oil, moisture and harmful gas erosion that may accelerate rubber aging.
- Avoid excessive bending
- Keep the cable dry and clean
- Protect from oil, moisture and harmful gases
- Accessories can be ordered separately
Quality and Delivery
The source page states that the cable sheath should be smooth with uniform diameter and without joints, bubbles or impact defects. The braided shield density should be at least 90%, and the product should be evaluated against ROHS 3.0 and REACH requirements. Packaging is listed as waterproof carton.
- Braided shield density at least 90%
- AC 1.5kV and DC 90kV withstand expectations
- ROHS 3.0 and REACH compliance evaluation
- Approx. 3 days for 1-10 pcs, 7 days for 11-20 pcs, 15 days for 21-200 pcs
